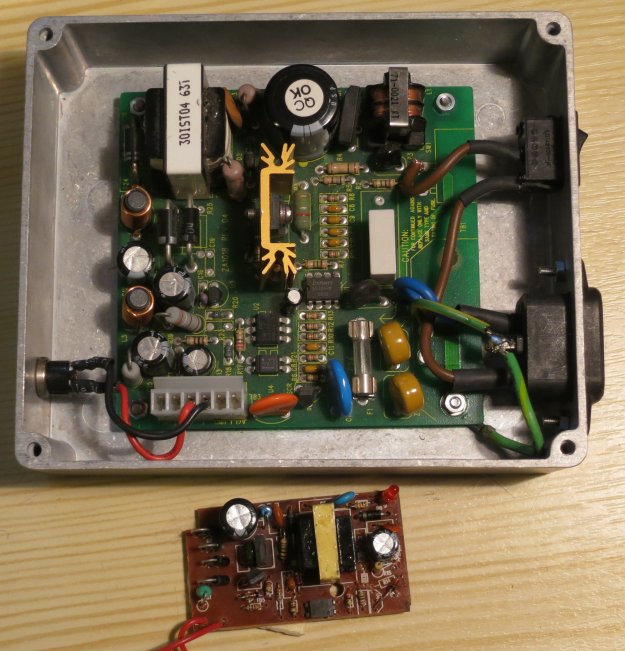

SheevaPlug Power Supply – Sorted

Orange Livebox 2.0, port forwarding and NAT loopback

For several years, I’ve been running a small server (a Sheevaplug, as it happens) connected to my home broadband connection. It’s not running anything public, but it’s simply handy to have somewhere I can log in to and do things with from anywhere on the internet. It used to be connected via Virgin Media’s cable broadband service, using an Apple Time Capsule as a router, and a dynamic DNS service to handle the name lookup, and it all worked just fine. I could access my server from computers both inside and outside the house.

Recently I moved house, and the new place has broadband provided by Telekomunikacja Polska masquerading as Orange. Their broadband deal comes with its own router which also provides the VoIP phone service as well as having something to do with the TV. It’s a Livebox 2.0. It would probably be possible to set up a different router to do the same job, but the thought of getting the VoIP stuff to work is too awful to contemplate.

The Livebox 2.0 is a fairly flexible box, and I managed to set it up to forward traffic on one port to my server. The server has a little script which updates its dynamic DNS entry, and that did exactly what it said on the tin. I could log in to the server from elsewhere on the internet. But could I connect to the server’s public IP address from inside the house? No way. The router just reported ‘no route to host’. This was annoying. I have various things set up on my laptop which assume they’ll be able to connect to my server, and to have those not work when I’m at home would be a real pain.

The problem seemed to be that the Livebox didn’t want to route traffic from the internal network, where my laptop was, to its external IP address. Reading Wikipedia on NAT, it turns out that this is a feature called NAT loopback. I didn’t even know it was possible for routers not to support it, but I learn something every day. The Orange Livebox 2.0 won’t do it (and yes, I played exhaustively with all the security/firewalling/port forwarding options).

This called for a workaround. My server has a DNS entry with a dynamic DNS provider. Let’s call it server.dyn.com (it’s not, actually). This resolves to whatever the external IP address of my router happens to be – let’s say 203.0.113.1. From inside my home network, the router makes a mess of handling traffic to 203.0.113.1 so I can’t contact it. However, I have control of DNS on the home network: it’s one of the services on my Sheevaplug. I know that ‘spoofing’ DNS entries is bad practice, but I’m going to do it anyway. I can add entries to my local DNS server which make server.dyn.com look up to 192.168.1.10, the local address of the server. The laptop won’t know the difference, but it’ll be able to contact the server. And outside the home network, there’s no chance of anyone, including me, accidentally contacting my DNS server because there’s no way for traffic to get to it. Here’s a picture.

I use bind9 as my internal DNS server. I added a section to /etc/bind/named.conf.local:

zone "dyn.com" {
  type master;
  file "/etc/bind/db.dyn.com";
};

and then created another file /etc/bind/db.dyn.com:

$ORIGIN .
$TTL 604800 ; 1 week
dyn.com IN SOA localhost. root.localhost. (
  2009060801 ; serial
  604800 ; refresh (1 week)
  86400 ; retry (1 day)
  2419200 ; expire (4 weeks)
  604800 ; minimum (1 week)
  )
  NS sheevaplug
$ORIGIN dyn.com
example A 192.168.1.10

It worked! At home, example.dyn.com resolves to 192.168.1.10, and out on the internet, it resolves to 203.0.113.1. I think it’s far from perfect – the timing settings on my dyn.com record probably need to be made shorter, so that the laptop doesn’t hang on to them when I leave home, and this setup means that all other subdomains of dyn.com don’t work, but it’s good enough for me for now. Maybe it’ll be helpful for you too.

Overheated 300Tdi engine

1 Reply

This blog was originally supposed to be about what’s going on in my workshop. However, this post is about what’s going on in someone else’s workshop – the garage which is currently working on my Land Rover. I’m putting it here because it’s an interesting engineering lesson.

My Land Rover’s 300Tdi engine is very badly broken, and apparently it’s all because of the failure of the ‘P gasket’. This part, which costs £3.24 according to a web search I’ve just done, forms a seal between the engine block and the mounting bracket which holds the water pump, alternator and various other things. It’s supposed to play its part in keeping the coolant inside the engine where it belongs. Trouble is, sometimes it doesn’t. And when the cooling water escapes on the motorway, the engine overheats before you’ve even got time to look at the the temperature gauge. This is an object lesson in the damage an engine can do to itself when it overheats badly.

The first I knew about it was that the engine suddenly lost power and then died altogether. I was only able to drift to the hard shoulder in a cloud of steam and smoke. Once cool, the engine would restart but ran badly, making an odd tapping noise, and the Land Rover’s top speed was about 40mph. It’s no racing car, but it’s not supposed to be that slow.

Cutting a long story short, the head is now off the engine. Here are pictures of what’s inside.

Firstly, cylinder number 4. I think this is the reason that the engine stopped: the piston got so hot that it started seizing in the bore, scoring it badly. The score lines are more than just visible, they’re perceptible with a fingernail, too.

The other cylinders look OK, but one bad one is enough.

Sadly the head gasket has also failed, between cylinders 2 and 3:

That would explain the loss of power. Considering that only one out of the four cylinders was in anything like normal condition, it’s amazing that it still ran at all.

I’ve now spoken to several people who’ve said that if a 300Tdi engine has been overheated this badly, the head will be wrecked as well. The search for a replacement engine is now on.

The BBC Micro linear power supply

5 Replies

The BBC Micro is the machine that really got me into computing. It was designed by Acorn in a tearing hurry for the BBC Computer Literacy Project in 1981 – see the film Micro Men for a great dramatization of the story. Because it was done in such a rush, some things weren’t quite finished for the early machines. One of those things was the power supply.

Why is the power supply interesting? Well, later BBC Micros had a perfectly normal, reliable switch-mode power supply, not dissimilar to the one in a modern PC. But early ones had a linear power supply, which gained a fearsome reputation for overheating, exploding, and being incompatible with nearly everything. I recently dragged an early, Issue 2, BBC Micro out of the loft and realised it contained this elusive beast, the linear power supply. I thought I’d see what all the fuss was about.

First things first: does it work? Well, yes. Despite not having been switched on for probably 20 years, it powered up absolutely fine. Boop-beep. No smoke or flames. Good. Time to see what’s inside.

This particular machine started life as a model A, with just 16K of RAM and very little else. However, it got upgraded at some point into a model B, with the full complement of RAM, and has an unusual Opus double-density disc interface in it as well as a couple of extra ROMs including Wordwise, the word processor. That’s the sort of thing that’s supposed to be impossible with a linear power supply. You can see the black box on the left – later power supplies are a gold colour. Here are a couple of closeups of its labels:

I took it out and examined it. The first thing I noticed was that it doesn’t really fit very well: there are some odd washers sandwiched between the power supply and the case, and they’ve used nylon screws to fit it, for some reason.

You can probably see from the side view that it’s riveted together. The rivets were quickly dealt with, revealing the insides:

Pretty straightforward stuff: a toroidal transformer, rectifier and smoothing, and a row of regulators. Here are closeups of the circuit board and regulators. Note the little orange tantalum capacitors. I suspect that’s where the reputation for explosions has come from: when used like this, they do tend to fail short-circuit and go off like little fireworks from time to time. These ones, however, are rated at 35V, so with only 5V or 12V across them they should be fairly reliable.

It didn’t take long to trace out the circuit.

What is interesting is the way the 2.25A output at 5V is achieved. Rather than use one big regulator, they’ve chosen to use three 7805s, rated at 1A each. Three sets of wires leave the power supply and are delivered to three places on the Beeb’s motherboard. There is no connection between the three 5V rails on the motherboard according to my meter. They’re entirely independent. This is good, because it means that the three 7805s won’t end up fighting each other if their output voltages are slightly different.

I took a few measurements while the machine was running. The voltage on the 4700uF smoothing capacitors was 10.5V. The currents delivered by each output were:

VCC1: 0.49A
VCC2: 0.75A
VCC3: 0.84A
-5V: 15mA

I tried removing the disc interface to see what difference that made to the power consumption. It reduced VCC1 to 0.35A and had no other effect.

The total current flowing at 5V is just over 2A, which is sailing fairly close to the wind given that the power supply is only rated at 2.25A. However, nothing in the power supply is under great stress, and I see no reason why it should fail unexpectedly. Unlike a switch-mode supply, it would also be easy to repair. If it was going to be used for a long time, I’d be very tempted to replace the 1uF tantalum capacitors with modern ceramic or electrolytic ones, just because the tantalums do tend to commit suicide randomly with old age.

These machines are now becoming collectable, and early ones like this are worth preserving in their own right. If you’ve got an early Beeb, there’s no reason to fear the linear power supply and replace it. It’s part of the story, and it’s possible to keep it going more or less indefinitely.

Installing balloonboard.org Debian Linux build on a Raspberry Pi

2 Replies

I’ve just successfully got Debian Linux running on a Raspberry Pi, having built it entirely from the balloonboard.org distribution. Why might you want to do this? Well, I did it because it gives me a small, clean Debian Linux installation which I can then customise. Here’s how I did it.

Get the software:

svn checkout svn://balloonboard.org/balloon/branches/menuconfig2
make menuconfig

Mode Expert mode
Balloon Board Raspberry Pi board
Choose which buildroot version to build -> Feb 2013
Select kernel version 3.8 (rpi)
Select Build boot image
Select Build kernel modules
Select Build initrd kernel
Select Build Raspberry Pi boot patition image
Select Build Debian Root Filesystem

Now type make and it should all build.

Create yourself an SD card with two partitions on it: one smallish FAT partition for the boot files, and a big ext4 one for the root filesystem. Don’t forget to format them.

Into the FAT partition copy the contents of build/kernel/rpi-initrd-boot. Into the ext4 partition untar the file build/rootfs/debianrootstrap.modules.tgz.

Now put the SD card into your Pi and switch it on. This should boot into a ‘recovery kernel’ which has a minimal root filesystem in its initial ramdisk, just enough to sort out the ‘proper’ root filesystem. I used the console serial port to work with it. The HDMI and USB ports might also work but I haven’t tried them. It should come up with a login prompt. Log in as root, password rootme.

Now to configure the root filesystem:

mount /dev/mmcblk0p2 /mnt/root
chroot /mnt/root

Finish the Debian installation (this has to be done now because some aspects of it need to run on the ARM processor, so it’s not easy to have your PC do it). It will ask you questions about time zones and things:

/var/lib/dpkg/info/dash.preinst install
dpkg --configure -a

Set a password for the root account so you can log in

passwd root

and add the serial port to the list of secure ports which are considered safe for root logins:

echo /dev/ttyAMA0 >> /etc/securetty

And shut things down

halt

That last step will probably produce an error message, but it doesn’t matter as long as it’s written everything to the SD card.

Now put the SD card back in your PC, and copy the contents of build/kernel/rpi-boot into the FAT partition. That contains the real kernel which will mount the newly-minted root filesystem. Put it back into the Pi and boot. It will ask you to change the root password at first login.

It worked for me, though I had to ‘ifdown eth0’ and ‘ifup eth0’ again to get Ethernet to work. From that point on I was able to install Debian packages normally.

How to get the second Raspberry Pi I2C bus to work

5 Replies

One of the useful interfaces on the Raspberry Pi is the I2C bus. Originally invented by Philips in the 1970s for controlling functions inside consumer electronics, especially TVs, it’s still very handy for connecting up lowish-speed peripherals to computers. Some of the most popular are real time clocks like the MCP7940, amongst many others, and general purpose input-output chips like the venerable PCF8574. One of its convenient features is that it only involves two wires: SCL (clock) and SDA (data).

The Raspberry Pi originally exposed one I2C bus on its GPIO connector, P1. It had another I2C bus dedicated to the camera connector, S5. However, with revision 2 of the Raspberry Pi, another connector was added. This was P5, squeezed in next to P1, and it also carried the second I2C bus, making it easier to get at and use. However, for some reason the two I2C buses got swapped over between revision 1 and revision 2. And to add a further layer of complication, the camera connector and P5 are wired to different GPIO pins on the processor, even though they are both logically the same bus. I’ve tried to summarise the situation in the table below.

	Revision 1		Revision 2
GPIO0	SDA0	P1 pin 3	SDA0	S5 pin 13
GPIO1	SCL0	P1 pin 5	SCL0	S5 pin 14
GPIO2	SDA1	S5 pin 13	SDA1	P5 pin 3
GPIO3	SCL1	S5 pin 14	SCL1	P5 pin 4
GPIO28			SDA0	P1 pin 3
GPIO29			SCL0	P1 pin 5

Working on the CUED MDP project recently, I had a need to get the both I2C buses working on a revision 2 Raspberry Pi. There was no problem with the one on P5: typing

i2cdetect -y 1

showed the devices I had connected to it. But

i2cdetect -y 0

showed nothing at all, and examining pins 3 and 5 of P1 showed no activity. Disappointing. After a bit of digging, it seemed to me that the standard Raspberry Pi Linux kernel configures the processor to use GPIO 0 and 1 as I2C bus 0, and GPIO 2 and 3 as I2C bus 1. I wanted the bus on P1 to work, so I needed GPIO 28 and 29 to be my bus 0.

The BCM2835 processor on the Raspberry Pi, like most modern integrated processors, can have its pins programmed to do various different functions. In this case I needed to disable I2C on GPIO 0 and 1 and enable it on GPIO 28 and 29. To do this I enlisted the help of Mike McCauley’s BCM2835 library. It makes reprogramming the GPIOs fairly straightforward.

To install the library on your Raspberry Pi, make sure it’s connected to the internet, then:

wget http://www.airspayce.com/mikem/bcm2835/bcm2835-1.26.tar.gz
tar xzvf bcm2835-1.26.tar.gz
cd bcm2835-1.26
./configure
make
sudo make check
sudo make install

By the time you read this, there might be a new version of the library, so check on Mike’s site to see what you’re getting.

The C code to set up the bus looks like this:

#include <bcm2835.h>

#define BCM2835_GPIO_FSEL_INPT 0
#define BCM2835_GPIO_FSEL_ALT0 4

main() {
    bcm2835_init();
    bcm2835_gpio_fsel(0, BCM2835_GPIO_FSEL_INPT);
    bcm2835_gpio_fsel(1, BCM2835_GPIO_FSEL_INPT);
    bcm2835_gpio_fsel(28, BCM2835_GPIO_FSEL_INPT);
    bcm2835_gpio_fsel(29, BCM2835_GPIO_FSEL_INPT);

    bcm2835_gpio_fsel(28, BCM2835_GPIO_FSEL_ALT0);
    bcm2835_gpio_set_pud(28, BCM2835_GPIO_PUD_UP);
    bcm2835_gpio_fsel(29, BCM2835_GPIO_FSEL_ALT0);
    bcm2835_gpio_set_pud(29, BCM2835_GPIO_PUD_UP);
}

It initialises the library, sets GPIO 0 and 1 as normal inputs (thus disabling their I2C function) and enables GPIO 28 and 29 as alternate function 0 (I2C bus), with pullup enabled. To build it, cut and paste the code into a file. I called it i2c0.c. Then compile it:

cc i2c0.c -o i2c0 -lbcm2835

and run it:

sudo ./i2c0

Now I2C bus 0 will be active on P1. Well, it worked for me. Once the code is compiled, of course, you can just run ‘i2c0’ after booting the Pi.

I realise that in future this will probably be made obsolete by changing the device tree sent to the Linux kernel at boot time, but for now it’s useful!

Lithium Battery Packaging Overkill

Analogue goodness

2 Replies

analogue0063 analogue0054 analogue0051 analogue0048

Avometer 8 BLR121 15V battery replacement

9 Replies

The Avometer 8 multimeter has lots of useful ranges, including a special high-resistance range which can measure resistances of up to 20 megohms. This is handy, but it needs a special 15 volt battery. The battery it’s designed for is a BLR121, which was once fairly common but is now dying out. The BLR121 is just about still available but it’s expensive, and since the meter is likely to last a long time I wanted a battery which would also last, and be easy to replace when necessary.

An old solder reel, a bit of copper pipe, and five common-or-garden lithium coin cells is all it took. The coin cells are CR2032, which are 20mm in diameter, and they fit just neatly inside the solder reel. I cut down the reel to form a tube about 35mm long. The stack of five cells is about 16mm long, so I filled the remaining space with a bit of copper pipe cut to about 22mm long. This is what the assembly looked like:

It fitted just neatly into the battery compartment of the meter. The spring contacts are very convenient because you can fit more or less any shape between them!

It works perfectly, and it’s cheap. The CR2032 cells are available for less than 50p each if you shop around, and they have a capacity of around 200mAh. The BLR121 replacements I’ve seen have a capacity of only 40mAh, so the lithium replacement should last about five times longer. Not bad.

Here’s a gratuitous picture of the Avo in use checking the power supply of a BBC Micro.
